Home> Products > Die Casting Parts > Aluminum Die Casting Heatsink

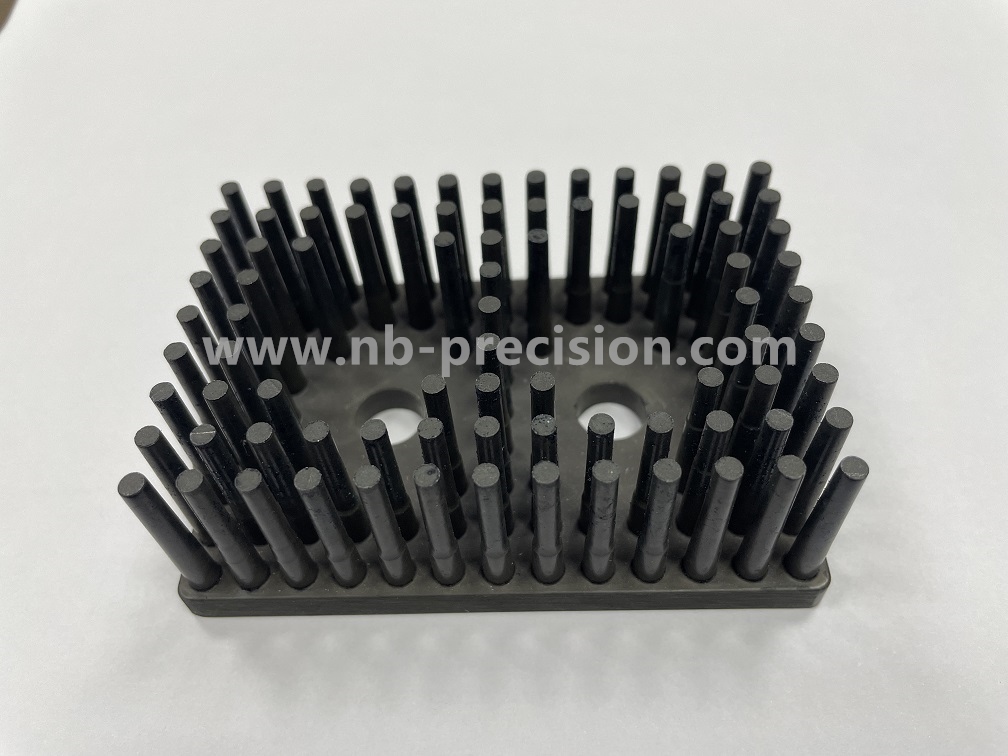

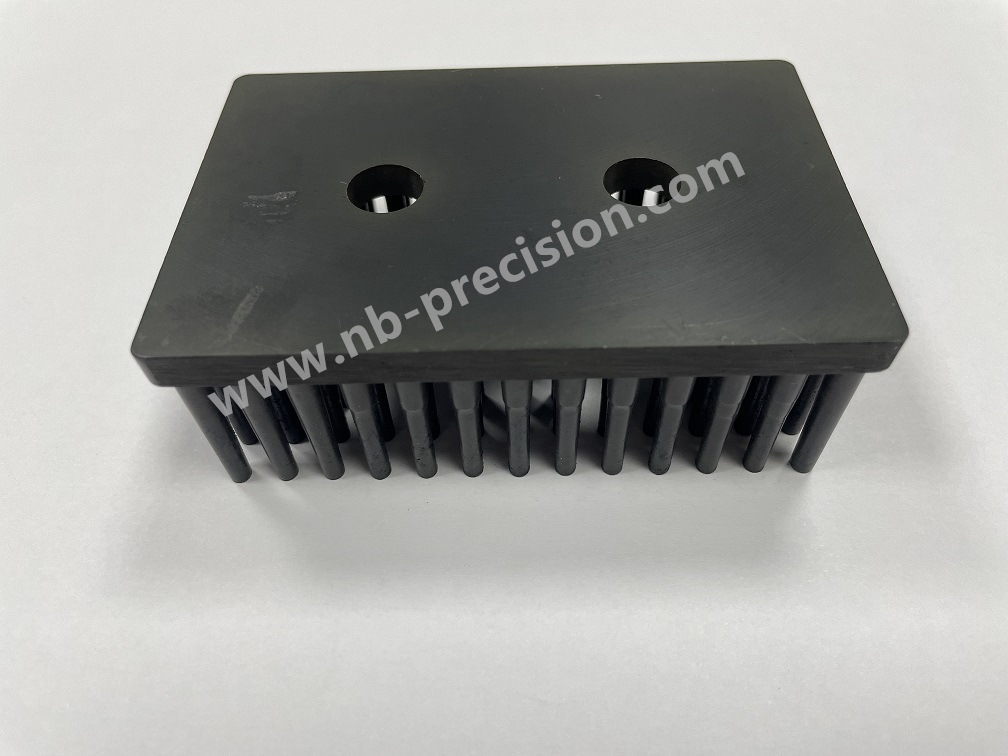

Aluminum Die Casting Heatsink

Array
Array
Array
Array
Product name : Aluminum Die Casting Heatsink
Product Tags : Die Casting Parts
Product Attributes :

Aluminum Alloy Die Casting Service | Aluminum Die Casting Heatsink


Product Description

Custom Aluminum Die Casting Services

NB Precision is professional manufacturer for different kinds of aluminum die casting and zinc precision die casting parts over 20years. Aluminum die casting is considered a non-expendable technique that can be repeatedly used to produce different shapes, sizes, and thicknesses of aluminum alloys for die casting. The aluminum die casting process also creates lightweight parts, maintains high operating temperatures, and provides excellent corrosion resistance for various industrial applications.The aluminum die casting parts are widely used in automoible engine systems, gearbox systems, body structural parts and auto parts like equipment motor housing, gear box housing, connectors and hearsinks.


Precision Aluminum Die Casting Manufacturers

NB Precision is one of the few manufacturers with the ability to expand the range of die casting with total of 8 cold chamber and hot chamber die casting manchines from 58T to 1650 Tons , which can produce parts weight from 5g to 35kgs.

NB Precision also has more than 15sets of 4 axis and 5 axis CNC centers, which can reach the accuracy 0.02mm.


The Aluminum Die Casting Process

The die casting process implements a steel mold which is made by ourself often capable of producing tens of thousands of castings in rapid succession.  The die must be made in at least two sections to permit removal of castings.  The casting cycle begins with the two die halves are clamped tightly together by the die casting press.  Molten aluminum is injected into the die cavity where it solidifies quickly.  These sections are mounted securely in a machine and are arranged so that one is stationary while the other is moveable.  The die halves are drawn apart and the casting is ejected.  Die casting dies can be simple or complex, having moveable slides, cores, or other sections depending on the complexity of the casting.  Most machines use mechanisms actuated by hydraulic cylinders to achieve locking.  Others use direct acting hydraulic pressure.  Die casting machines, large or small, very fundamentally only in the method used to inject molten metal into the die.


Aluminum Die Casting Advantages

  1.Aluminum Die Casting is made of aluminum alloy, also can be produced according to your requirements.

  2.Different kinds of finish available,l like anodized, power coating, painting, polishing, electrophoress, plating ect

  3. Different dimensions according to the client's request

  4. Can provide various sizes and packing according to special requirements

  5. Customized and tailored order are welcome

  6. High quality and delivery in time


Custom Aluminum Alloy Material Options

ADC12, A380, AlSi12, A356, ZL102, YL104, YL112, YL113,or other aluminum alloy all acceptable.


Aluminum can also withstand the highest operating temperatures of all the die-cast alloys. Moreover, cast aluminum is versatile and corrosion-resistant; it retains high dimensional stability with thin walls and can be used in almost any industry


Aluminum Die Casting Surface Treatment

Sand blasting, polishing, Electroplating, powder coating, oxidation (black and nature), passivation,etc.


Custom Aluminum Die Casting Applications

Due to its high strength and production rates, aluminum die casting is used for applications that span various industries; these include: Auto parts, machinery parts, household parts, Cooker parts, furniture parts, etc


Aluminum Die Casting Service

Looking for high-quality aluminum alloy die casting services? Contact us for more information regarding our custom aluminum die casting service options, or request a quote for direct pricing today.


Aluminum Precision machining

4 or 5 Axis CNC center, milling machine, drilling machine, numerical lathe, Shot blasting machine, Melting furnace, Sawing machine, The air compressor and so on.


Processes

Casting, Deburring, Machining, Surface Treatment, Packing,all per request.
